SKU: RCAS1601460121
OHMtec RC AW 160x14,6 Stg. 12m
| Safety up, costs down – with the OHMtec RC pipe. OHMtec RC pipes were specifically developed for the extreme demands of alternative installation methods. Manufactured from PE100 RC material, these pipes are characterized by high stress crack resistance and can withstand even the highest point loads. The added safety against scoring and notches opens up new possibilities for both open-cut and trenchless construction. |
Dimensions / Pressure rating
| Outer diameter (in mm) | 160 |
| Wall thickness (in mm) | 14.6 |
| SDR (Standard Dimension Ratio) | 11 |
| Pressure level (in PN) | 16.0 |
| Length (in m) | 12 |
| Weight per meter (kg/m) | 6.740 |
Application / Standard / Certification

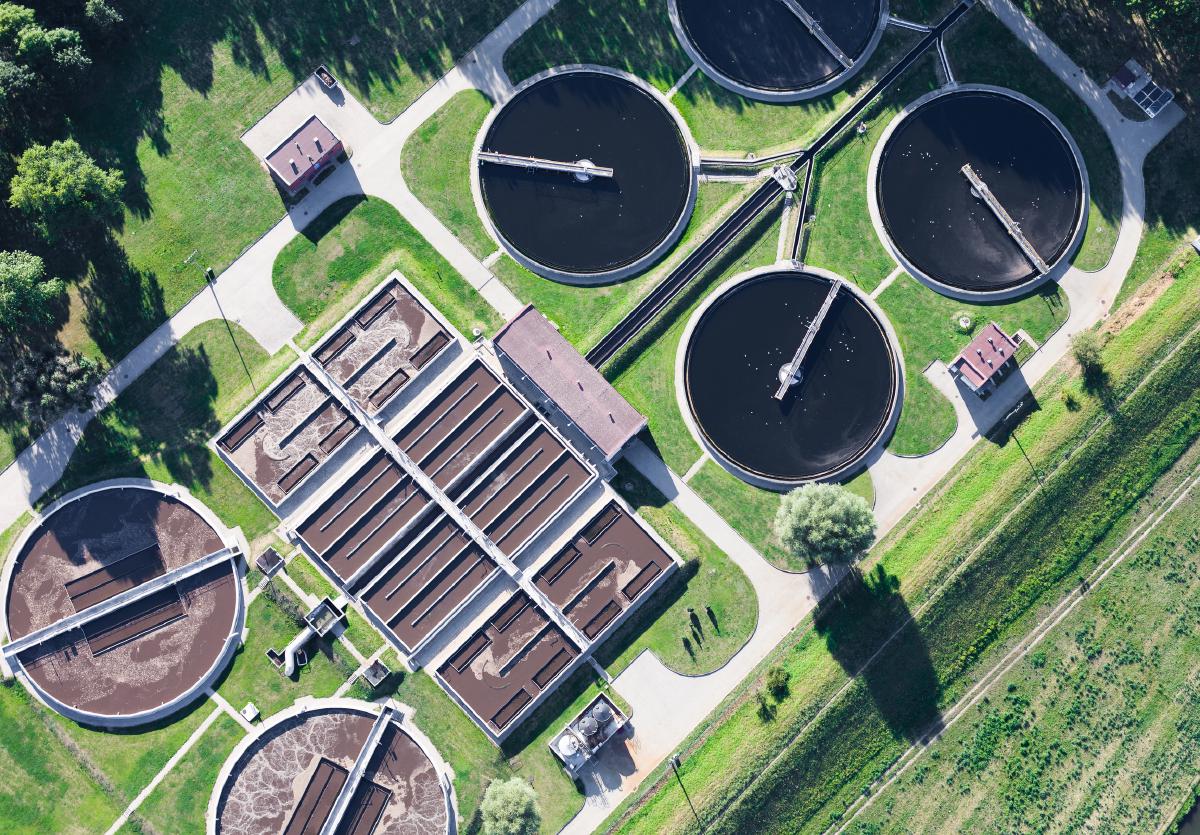

| Application | Wastewater |
| Raw material | PE100RC |
| Color | black with brown stripes |
| Inner structure | smooth internal surface |
| Standard | DIN 8074/75 |
Delivery form / Packaging units
| Item No. | RCAS1601460121 |
| EAN | 4054602018808 |
| Length (in m) | 12 |
| Delivery form | Rod |
| Packaging unit (in pieces) | 20 |
Installation / Connection
| Installation method | Open-cut installation (with and without sand bed), trenchless installation (ploughing, milling, horizontal directional drilling) |
| Connection | Butt fusion welding, electrofusion welding, mechanical coupling |
Downloads & Links
Technical Datasheet (PDF)Berechnungstools für dieses Produkt
ETIM classification
| Wall thickness (EF000229) | 14.6 |
| Connection 1 (EF000321) | EV020374 |
| Material quality (EF001257) | EV016326 |
| Material (EF002169) | EV000157 |
| Outer pipe diameter (EF006272) | 160 |
| Standard Dimension Ratio (SDR) (EF010670) | 11 |
| Article compression class (EF020007) | EV020104 |
| Pipe colour (EF020430) | EV000206 |
| Max. operating pressure at 20 °C (EF023116) | 16 |
| Nominal diameter (EF023191) | EV013172 |
