SKU: RCT635810016

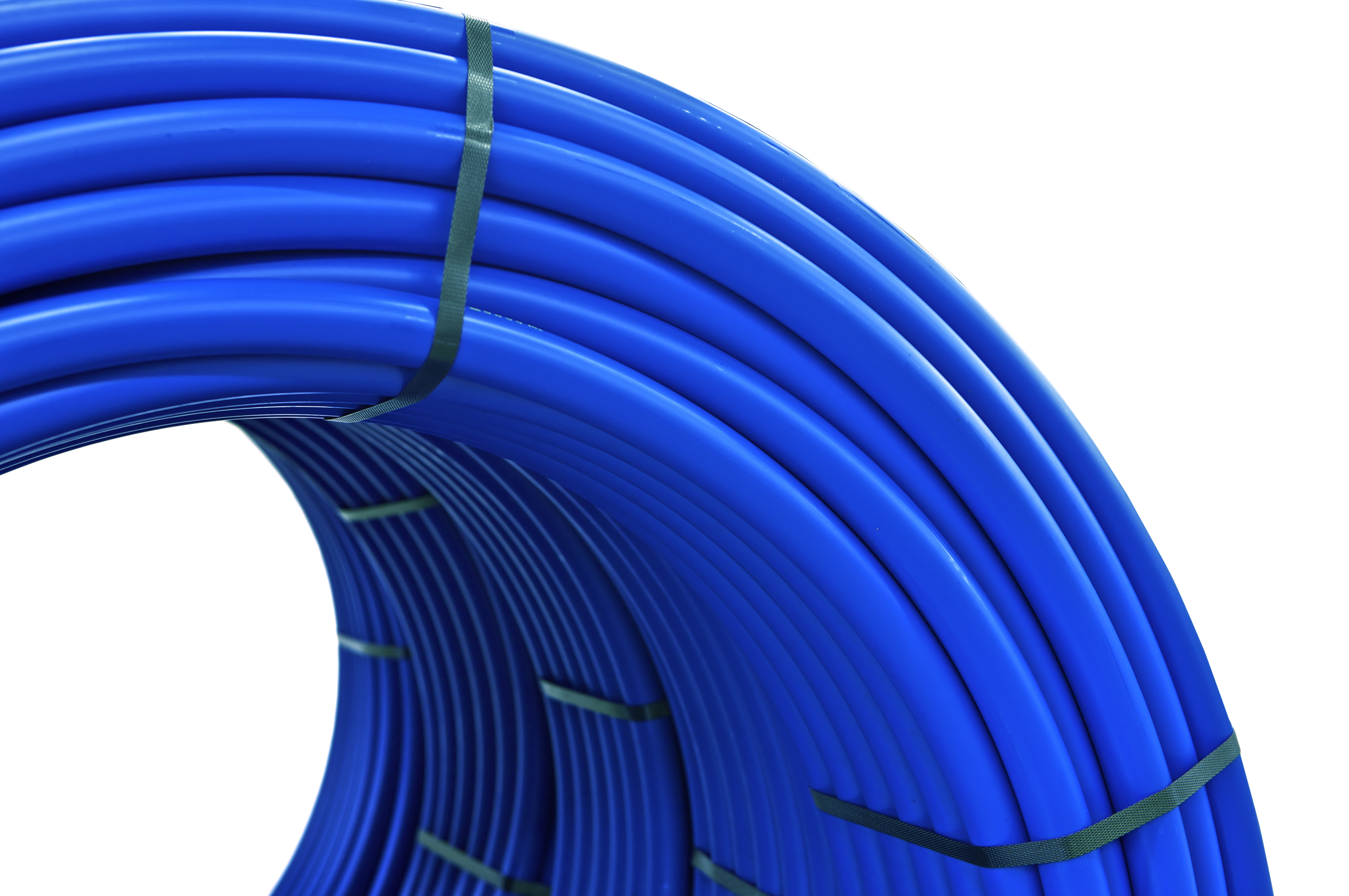

OHMtec RC 2S TW 63x5,8 Rg. 100m
| Safety up, costs down – with the OHMtec RC 2S pipe. Drinking water is one of our planet's most precious resources. Protecting it carefully is of paramount importance. With the OHMtec RC 2S pipe, certified according to DVGW and PAS 1075, we offer one of the most robust and resistant plastic pipes in our range. The OHMtec RC 2S pipe withstands even the toughest operating conditions during alternative installation methods and is highly resistant to extreme point loads. 100% PE100+ RC for absolute reliability. |
Dimensions / Pressure rating
| Outer diameter (in mm) | 63 |
| Wall thickness (in mm) | 5.8 |
| SDR (Standard Dimension Ratio) | 11 |
| Pressure level (in PN) | 16.0 |
| Length (in m) | 100 |
| Weight per meter (kg/m) | 1.060 |
Application / Standard / Certification
| Application | Drinking Water |
| Raw material | PE100RC |
| Color | black inside / blue outside |
| Inner structure | smooth internal surface |
| Standard | DIN EN 12201 |
| Certification | DVGW, DINCertco |
Delivery form / Packaging units
| Item No. | RCT635810016 |
| EAN | 4054602014961 |
| Length (in m) | 100 |
| Delivery form | Coil |
| Packaging unit (in pieces) | 1 |
Installation / Connection
| Installation method | Open-cut installation (with and without sand bed), trenchless installation (ploughing, milling, horizontal directional drilling) |
| Connection | Butt fusion welding, electrofusion welding, mechanical coupling |
Downloads & Links
Technical Datasheet (PDF)Berechnungstools für dieses Produkt
ETIM classification
| Wall thickness (EF000229) | 5.8 |
| Connection 1 (EF000321) | EV020374 |
| Material quality (EF001257) | EV016326 |
| Material (EF002169) | EV000157 |
| Outer pipe diameter (EF006272) | 63 |
| Standard Dimension Ratio (SDR) (EF010670) | 11 |
| Article compression class (EF020007) | EV020104 |
| Pipe colour (EF020430) | EV000206 |
| Max. operating pressure at 20 °C (EF023116) | 16 |
| Nominal diameter (EF023191) | EV013192 |
