SKU: 32290076

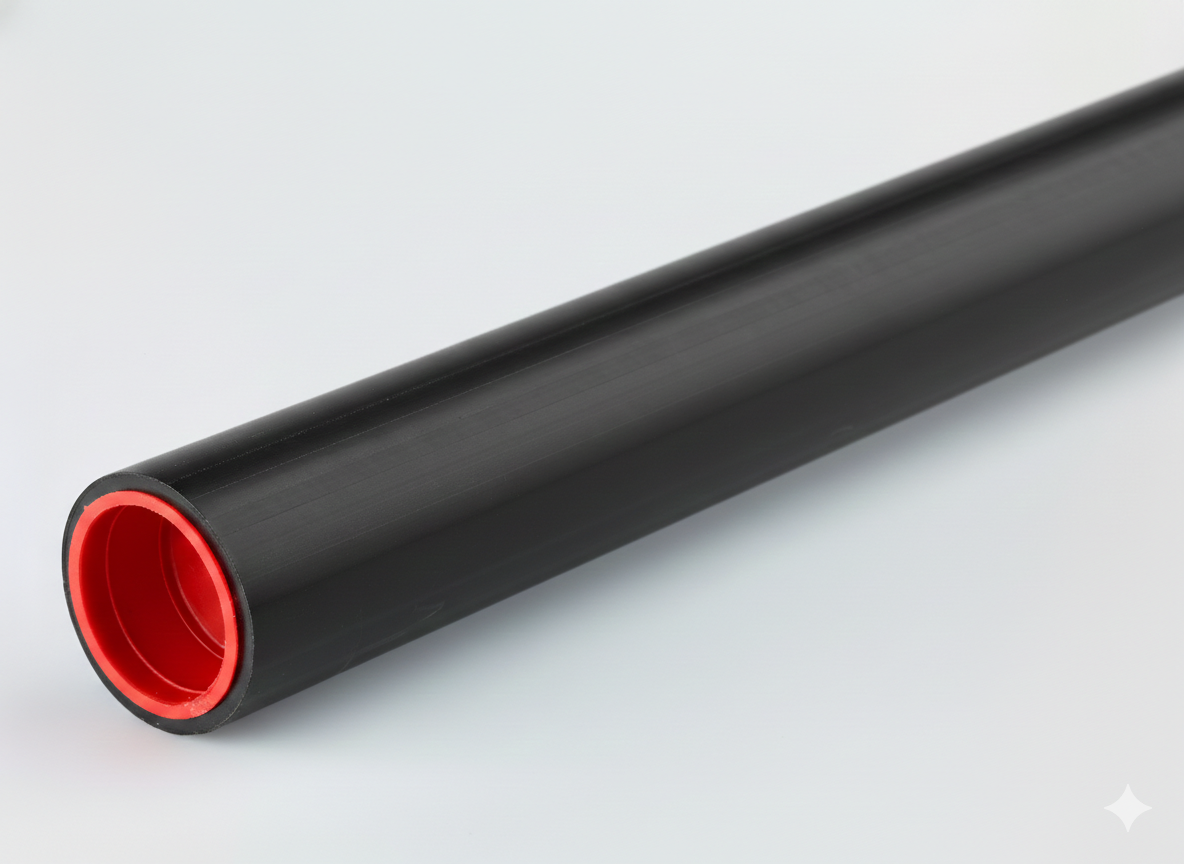

OHM PE-LD ISO 32x2,9 Stg. 7m
| Flexibility is key: - Maximum flexibility: Extremely pliable, allowing for very easy routing and excellent handling. - Easy to connect using mechanical couplings. - Suitable for use in horticulture and for agricultural service water disposal. |
Dimensions / Pressure rating
| Outer diameter (in mm) | 32 |
| Wall thickness (in mm) | 2.9 |
| SDR (Standard Dimension Ratio) | 0 |
| Pressure level (in PN) | 0.0 |
| Length (in m) | 7 |
| Weight per meter (kg/m) | 0.257 |
Application / Standard / Certification
| Application | Irrigation |
| Raw material | PE-LD |
| Color | black |
| Inner structure | smooth internal surface |
Delivery form / Packaging units
| Item No. | 32290076 |
| EAN | 4054602004573 |
| Length (in m) | 7 |
| Delivery form | Rod |
| Packaging unit (in pieces) | 519 |
Installation / Connection
| Installation method | - |
| Connection | Mechanical coupling |
Downloads & Links
Technical Datasheet (PDF)ETIM classification
| Wall thickness (EF000229) | 2.9 |
| Connection 1 (EF000321) | EV020374 |
| Material quality (EF001257) | EV020169 |
| Material (EF002169) | EV000157 |
| Outer pipe diameter (EF006272) | 32 |
| Article compression class (EF020007) | EV020243 |
| Pipe colour (EF020430) | EV000206 |
| Nominal diameter (EF023191) | EV005922 |
